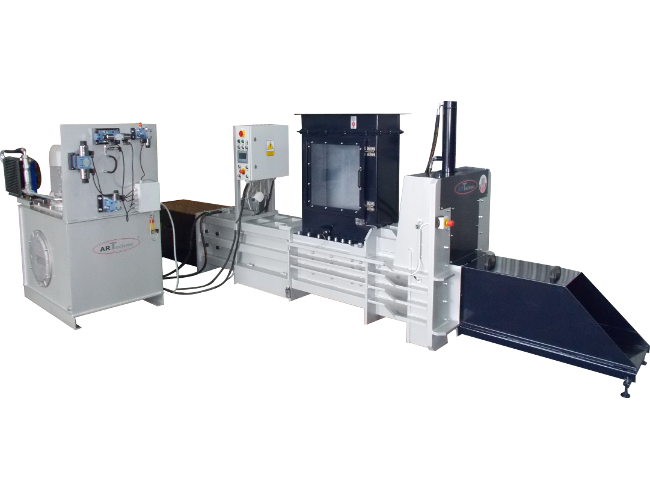

Baler for cans type PBPPs500-15
baler for cans
Technical specification
Number of chambers:
single
The density for aluminum cans:
ca. 700 kg/m3
Charging hole:
310 x 770 mm

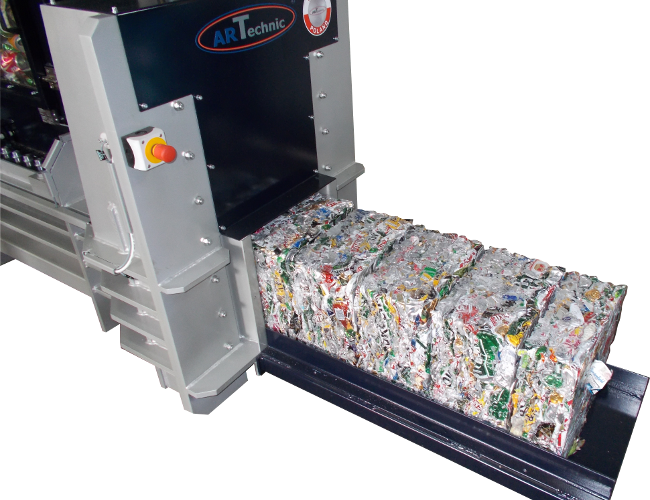

Bale launch:
automatic
Max. pressure:
500kN (50 tons)
Supply:
400/50 [V/Hz]
Unit pressure:
40,8 kg/cm2
Socket:
400/32A
Bale dimensions:
350 x 350 x 130-250 mm
Engine power:
15 kW
Bale weight:
ca. 11 - 18 kg (Aluminium can)
Weight:
4300 kg
Practical productivity:
to 410 kg/h (Aluminium can)
Załadunek:
top
Productivity
5
cykli zagęszczenia
8
cykli zagęszczenia

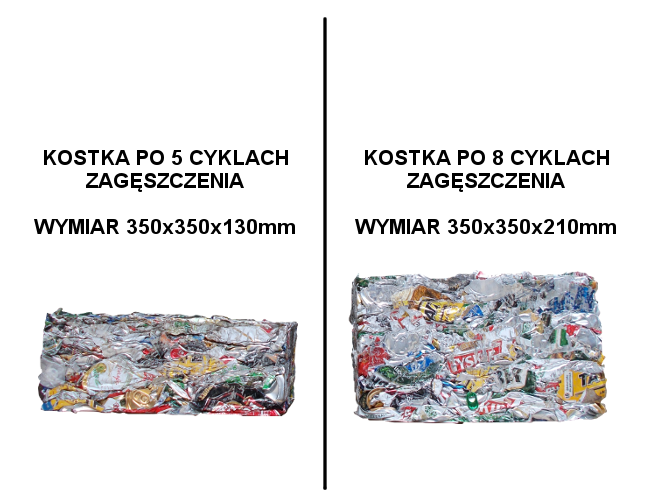

Bale dimensions:
350 x 350 x 130 mm
Bale dimensions:
350 x 350 x 210 mm
Bale weight:
ca. 11 kg
Bale weight:
ca. 17,5 kg
Czas tworzenia beli:
115 seconds
Czas tworzenia beli:
155 seconds
Practical productivity:
ca. 354 [kg/h]
Practical productivity:
ca. 406 [kg/h]
Density:
ca. 710 kg/m3
Density:
ca. 680 kg/m3
Dimension
Legend
[mm]
A
Length
4900
B
Height
1700
C
Width
900
D
Filling inlet
310 x 770
Advantages of the machine
- The moving of the pressing plate is kept extremely rigid and straight.
- The steel construction of our machines is designed to withstand loads far in excess of the rated load for the different models (this is why our machines have a generally bigger own mass compared to the competition)
- The possibility of producing specified machines concerning the customer’s request e.g. changes in the stroke of the pressing plate, changes in the loading hole, changes in the size of the bale, etc.
- No hidden costs of operating the machine

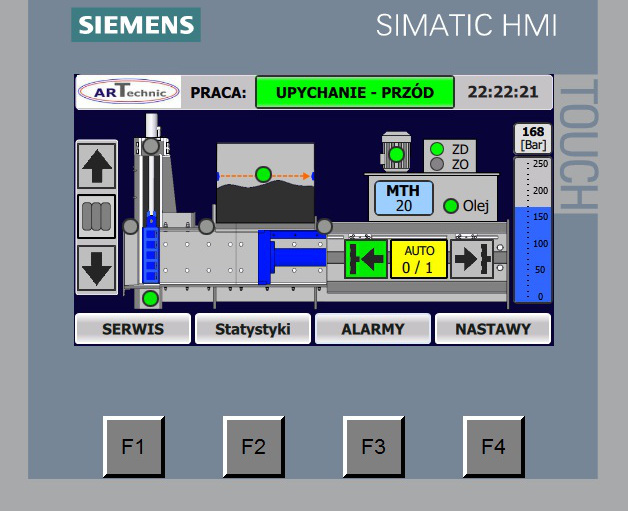

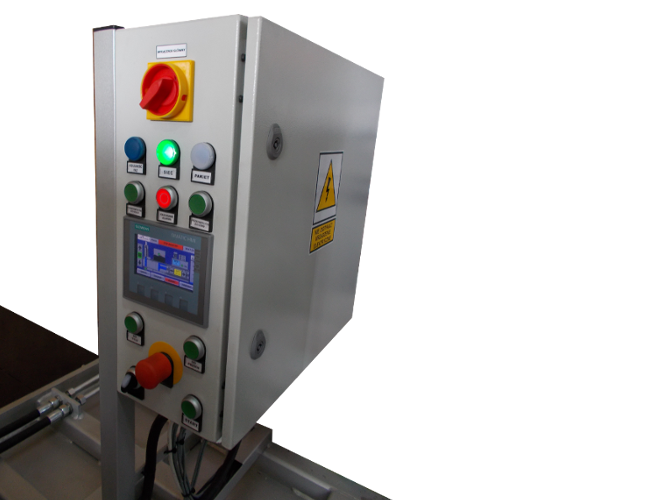

Steering
Steering
- Controller SIEMENS S7
- the ability to connect the machine to the statArtechnic
Film
