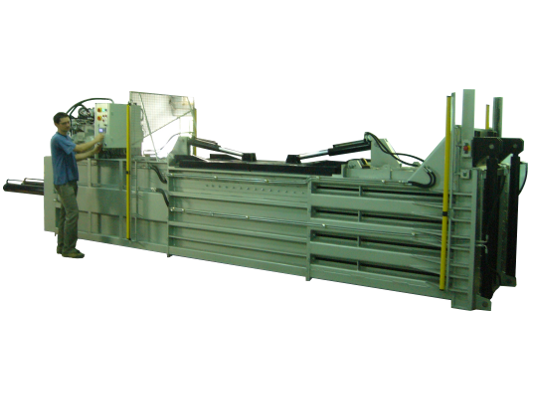

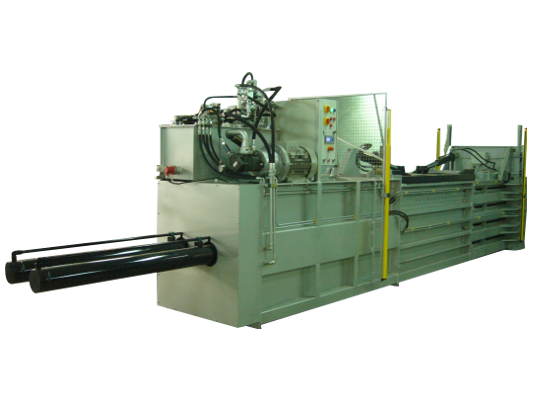

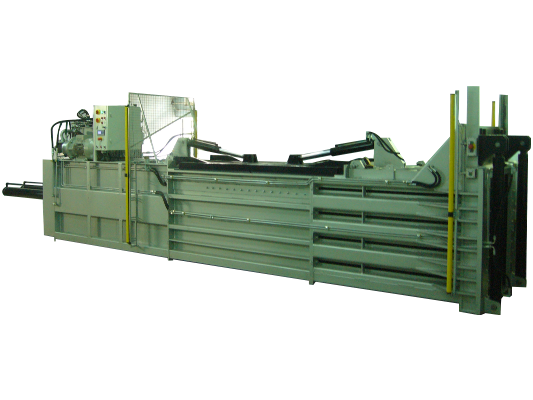

Waste balers type PBPe600-k
series 1100x780
Technical specification
Number of chambers:
single
Number of strappings:
4

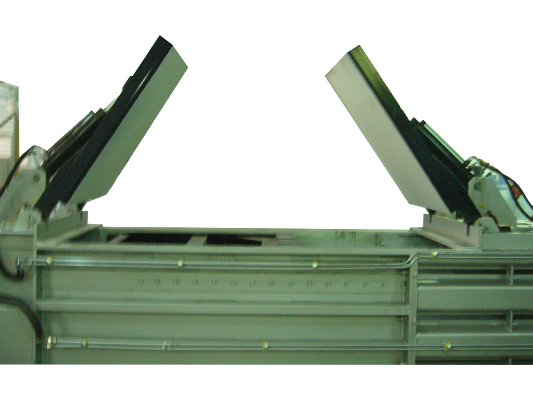

Charging hole:
2100 x 800 mm
Bale launch:
automatic
Max. pressure:
600kN (60 tons)
Supply:
400/50 [V/Hz]
Unit pressure:
7 kg/cm2
Socket:
400/32A
Bale dimensions:
1100 x 780 x 600-1500 mm
Fuse protection:
32C
Bale weight:
ca. 200 - 600 kg
Engine power:
11 kW
Productivity:
ca. 2-6 bale/h.
Weight:
8500 kg
Loading:
top
Bale tying:
manual
Dimension
Legend
[mm]
A
Length
7850
B
Height
2700
C
Width
1450
D
Filling inlet
2100 x 800
Advantages of the machine
- The moving of the pressing plate is kept extremely rigid and straight. The hydraulic cylinder does not take the bending forces from the pressing plate, which could lead to its damage. These forces are taken over by special plastic guides which are tailored to the corners of the chamber. The guides are made from specially chosen plastic, which is characterized by very high resistance to abrasion.Therefore, these elements are extremely durable. This avoids the need to control the tilt of the pressing plate. Because of all this you can easily exploit our machines, even for very demanding materials, without worrying of an improperly use of the machine.
- The steel construction of our machines is designed to withstand loads far in excess of the rated load for the different models (this is why our machines have a generally bigger own mass compared to the competition)
- A system to prevent the decompressing of material after subsequent cycles of work.
- Possibilty to bind the packages (bales) with all commonly used materials like a polyester tape, twine or steel wire
- The possibility of producing specified machines concerning the customer’s request e.g. changes in the stroke of the pressing plate, changes in the loading hole, changes in the size of the bale, etc.
- Possibility to choose the version of the controller, and to choose additional options, depending on individual needs
- Unmanned and durable hydraulic system
- No hidden costs of operating the machine
Steering
Steering x (EXTRA)
- Controller PLC
- Automatic digital steering of the work cycle
- Finished-bale signal
- LCD display
- Stepless maximum pressure regulation with 1 ton progression
- Stepless bale height regulation with 2 cm progression
- Daily/weekly/monthly statistics – the readout of the number of finished bales with their weight estimation
- Different programs for different materials
- Possibility of regulating the length of time for which the pressing plate stays in the lower position
- the ability to connect the machine to the statArtechnic
Control Panel
Film
Tapes for bale tying
Specification:
Width [mm]
Endurance [mm]
Tape length in roll [mb]
19
725
250
6 (sznurek)
590
220
Width [mm]
Endurance [daN]
Weight [kg]
3
<400
40
