Waste balers type PBPe300-o
series 800x700
Technical specification
Number of chambers:
single
Number of strappings:
3
Charging hole:
1000 x 700 mm
Bale launch:
automatyczny
Max. pressure:
300kN (30 tons)
Supply:
400/50 [V/Hz]
Unit pressure:
5,35 kg/cm2
Socket:
400/32A
Bale dimensions:
800 x 700 x 800-1100 mm
Fuse protection:
25C
Bale weight:
ca. 150 - 400 kg
Engine power:
7,5 kW
Productivity:
ca. 3 bale/h.
Weight:
5000 kg
Loading:
top
Bale tying:
manual
Dimension
Legend
[mm]
A
Length
5650
B
Height
2200
C
Width
2000
D

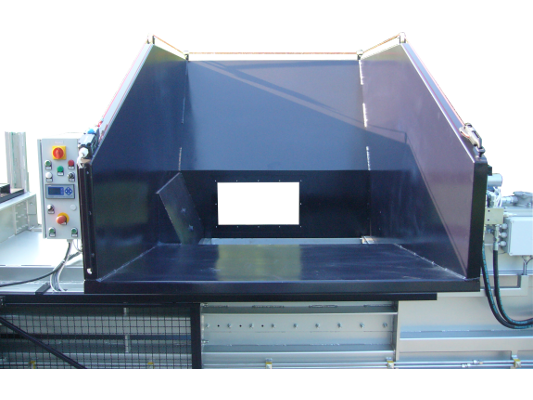

Filling inlet
1000 x 700
Steering
Steering x (EXTRA)
- Controller PLC
- Automatic digital steering of the work cycle
- Finished-bale signal
- LCD display
- Stepless maximum pressure regulation with 1 ton progression
- Stepless bale height regulation with 2 cm progression
- Daily/weekly/monthly statistics – the readout of the
number of finished bales with their weight estimation - Different programs for different materials
- Possibility of regulating the length of time for which
the pressing plate stays in the lower position - the ability to connect the machine to the statArtechnic
Control Panel
- Main switch with the possibility to lock in position “0” (prevents from an use of the machine by unauthorized persons)
- The white light “PACKET” indicates that the press has achieved the maximum filling
- LCD and control panel
- The green light “POWER” indicates a connection of the bale to power and that the main switch is turned ON
- Emergency “STOP” switch
- Button “START” – starts the pressing process
- Buttons “THROW-OFF”. Two-handed operation – controler for the bale ejector
Tapes for bale tying
Specification:
Width [mm]
Endurance [mm]
Tape length in roll [mb]
19
725
250
6 (string)
590
220
Width [mm]
Endurance [daN]
Weight [kg]
3
<400
40
